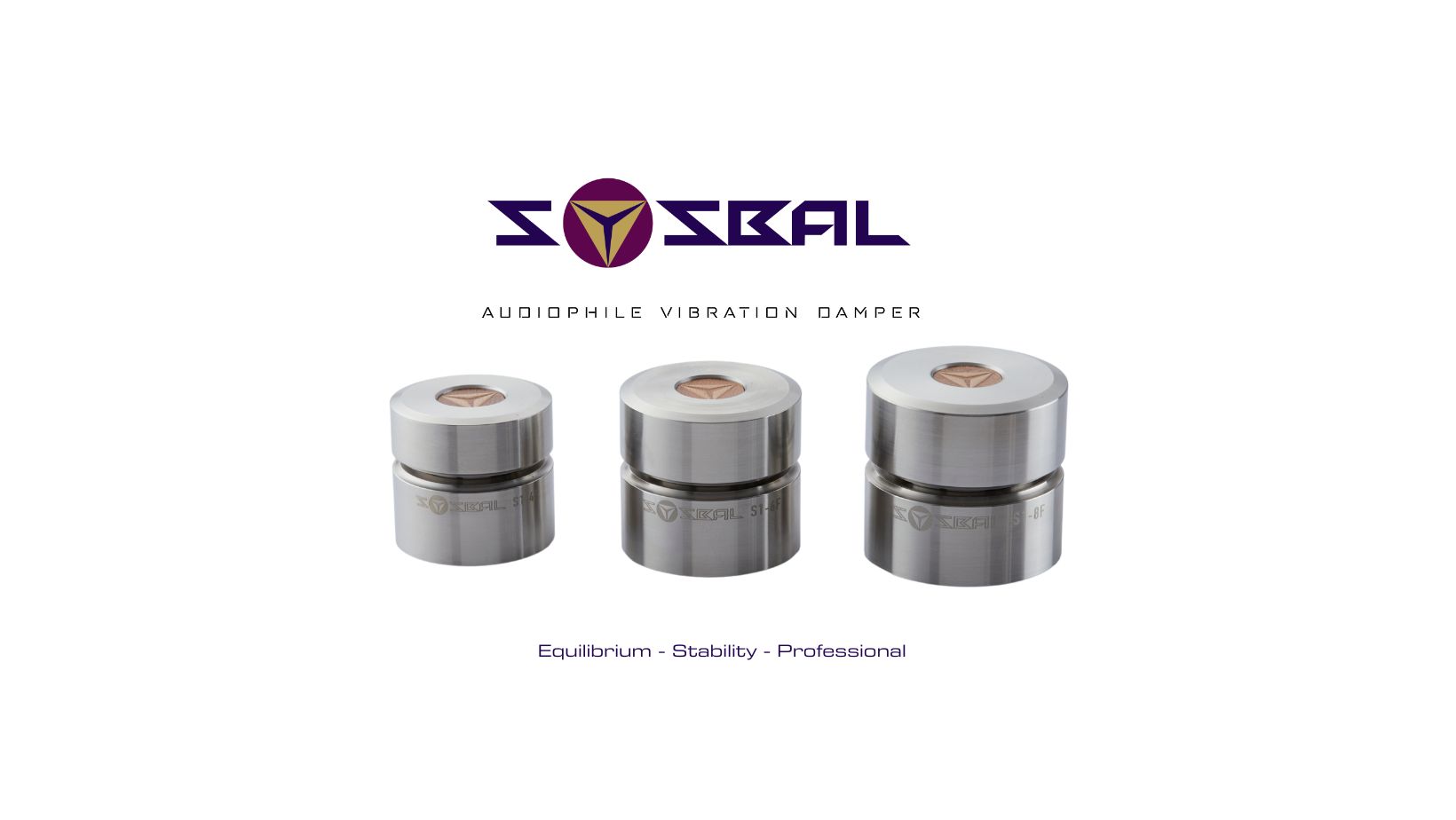

SYSBAL Vibration Isolation Feet Uniquely Different
One Touch of Nature Sound
Makes the Whole World Real
The SYSBAL cavity surface is unique and different from other vibration isolation feet that use ball bearing systems as follows:
- Each ball bearing in a typical vibration isolation device has two points of contact: a force acting at the top and a resistance force at the bottom. But each ball bearing inside the SYSBAL cavity surface has 4 points of contact: 1 point of action force and 3 points of resistance, keeping each ball bearing is always in a stable equilibrium.
- The SYSBAL consists of 2 parts: the upper part (housing), which contains adjacent sets of three ball bearings per layer that are stacked in a plurality of layers within the housing cavity, and the lower part (ball bearing retainer). This lower part can adjust the contact plane to be in full plane with the support surface, and it is fixed at the center axis of the housing at all times when there is a load on the upper part. These two parts do not touch each other, so the energy from vibration is dissipated as much as possible and does not return the energy to the audio equipment, resulting in a high damping ratio to reduce the vibrations
The SYSBAL is a vibration damping device that uses a vibration reduction method by placing the SYSBAL between the audio equipment and a supporting surface which can touch an uneven surface
S1 SERIES
Get Perfect Sound with SYSBAL
SYSBAL : S1 SERIES

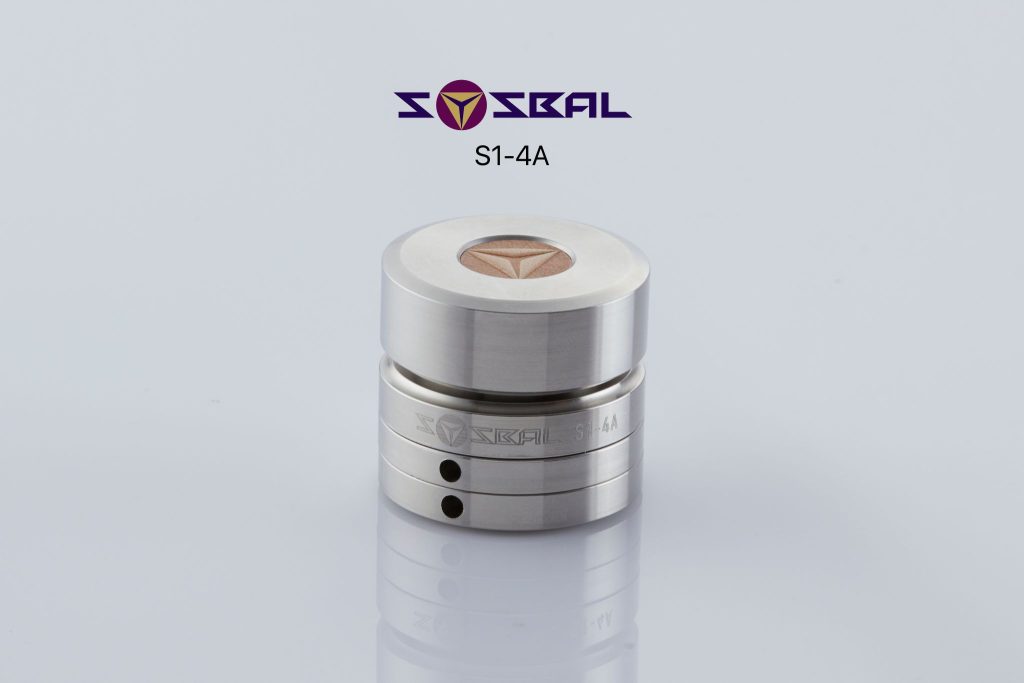

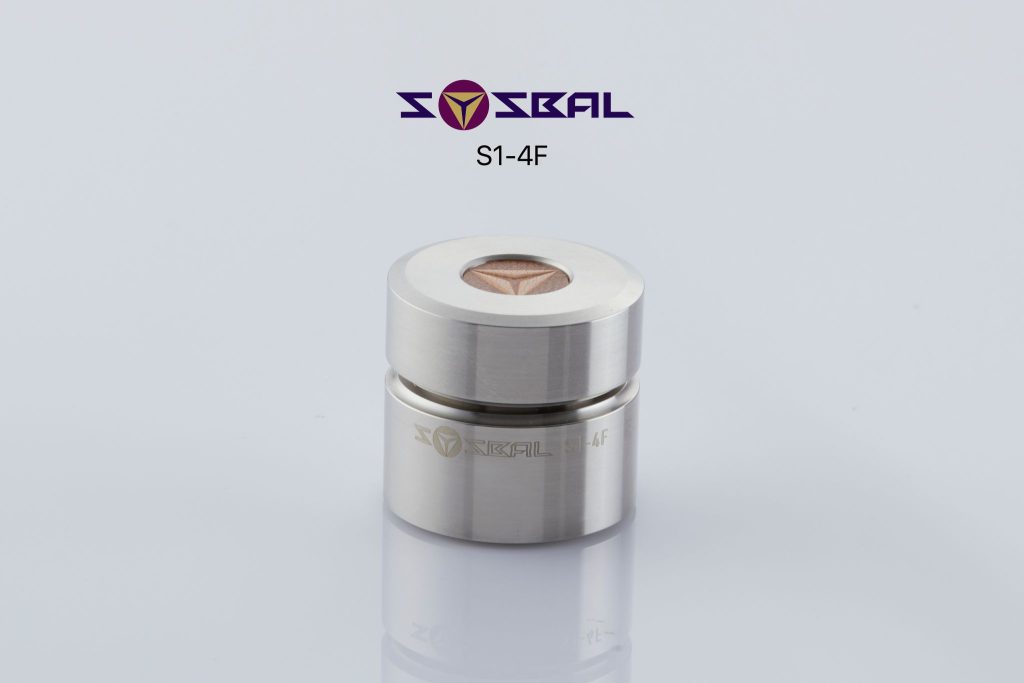

S1-4F / 4A
( 4 mm Ball Bearings, Type-F / A)
S1-6F / 6A
( 6 mm Ball Bearings, Type-F / A)
S1-8F / 8A
( 8 mm Ball Bearings, Type-F / A)
S1-10F / 10A
( 10 mm Ball Bearings, Type-F / A)
Why Use SYSBAL : Vibration Isolation Feet for Audiophiles
